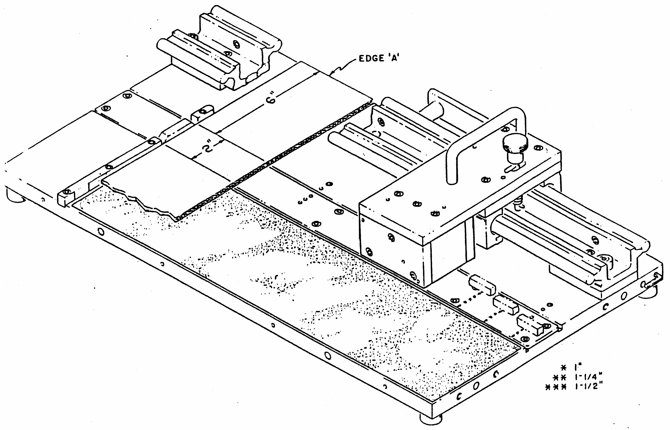

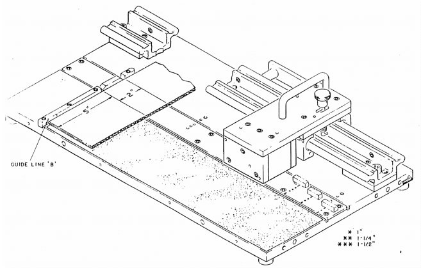

ITEM # |
DESCRIPTION |
QTY. |
|
|
|
|
|
1 |
BEARING SLIDE ASSY. |
1 |
|
1A |
ALLEN HEAD CAP SCREW |
1 |
|
1B |
ALLEN HEAD CAP SCREW |
1 |
|
1C |
LOCKING NUT |
1 |
|
2 |
HANDLE |
1 |
|
2A |
FLAT HEAD ALLEN CAP SCREWS |
2 |
|
3 |
KNOB |
1 |
|
4 |
SHAFT |
1 |
|
5 |
PIN – LONG |
1 |
|
6 |
SPRING |
1 |
|
7 |
PIN – SHORT |
1 |
|
8 |
TOP PLATE CUTTER ASSY. |
1 |
|
8A |
ALLEN HEAD CAP SCREW |
4 |
|
8B |
PIN |
4 |
|
9 |
ALLEN HEAD CAP SCREW |
3 |
|
10 |
ALLEN HEAD CAP SCREW |
3 |
|
11 |
RIGHT CLAMP BLOCK |
1 |
|
12 |
ALLEN HEAD CAP SCREW |
3 |
|
13 |
LEFT CLAMP BLOCK |
1 |
|
14 |
CUTTER BLADE |
1 |
|
15 |
CUTTER BLADE |
1 |
|
16 |
CUTTER BLADE HOLDER |
1 |
|
17 |
PIN |
8 |
|
18 |
NYLON STOP ASSY. |
2 |
|
19 |
SLIDE MECHANISM BASE |
1 |
|
20 |
ALLEN CAP SCREW |
4 |
|
21 |
BUSHING |
4 |
|
22 |
ALLEN HEAD CAP SCREW |
2 |
|
23 |
HANDLE |
1 |
|
24 |
ALLEN CAP SCREW |
2 |
|
25 |
RUBBER STOP |
2 |
|
26 |
RARE EARTH MAGNET |
1 |
|
26A |
ALLEN WRENCH SHORT 3/16’’ |
1 |
|
27 |
SLIDE SPACER |
1 |
|
28 |
FLAT HEAD ALLEN CAP SCREWS |
14 |
|
ITEM # |
DESCRIPTION |
QTY. |
|
|
|
|
|
29 |
ANVIL |
1 |
|
29A |
PIN ASSEMBLY |
1 |
|
29B |
PIN |
4 |
|
30 |
NON-SKID PAD |
1 |
|
31 |
BUSHING |
4 |
|
32 |
ADJUSTABLE STOP BAR |
1 |
|
33 |
PIN |
4 |
|
34 |
RARE EARTH MAGNET |
4 |
|
35 |
ALLEN HEAD CAP SCREW |
4 |
|
36 |
RUBBER FOOT |
4 |
|
37 |
BASE |
1 |
|
38 |
ALIGNMENT BAR #1 |
1 |
|
38A |
ALIGNMENT BAR #1 – FOR 29A |
1 |
|
39 |
ALLEN HEAD CAP SCREW |
4 |
|
40 |
ANVIL ALIGNMENT BAR #2 |
1 |
|
40A |
FLAT HEAD ALLEN CAP SCREW |
2 |
|
41 |
ALIGNMENT BAR #3 |
1 |
|
42 |
SLIDE SPACER |
1 |
|
42A |
PATENT PENDING STICKER |
1 |
|
42B |
CAUTION STICKER |
1 |
|
42C |
CAUTION STICKER |
2 |
